About the armored Toyota Land Cruiser 300 GR
Armored Toyota Land Cruiser 300 GR manufactured by REFORM is an SUV with a hidden PZSA-4 armored capsule according to DSTU 3975-2000 and additional B6 (BR6/FB6) protection. The 299 hp diesel engine, permanent four-wheel drive and reinforced components combine the capabilities of the LC300 with driver and passenger protection.
PROTECTION
Solid concealed armored capsule made of PZSA-4 level ballistic steel.
BRONZE GLASS
Ballistic glass with shatterproof polycarbonate layer and electrically heated windshield.
RELIABILITY
Reinforced door hinges, brakes and suspension for the increased curb weight of the car.
COMFORT
Adapted interior trim, auxiliary handrails and reinforced front windows.
Armored REFORM LC300 GR

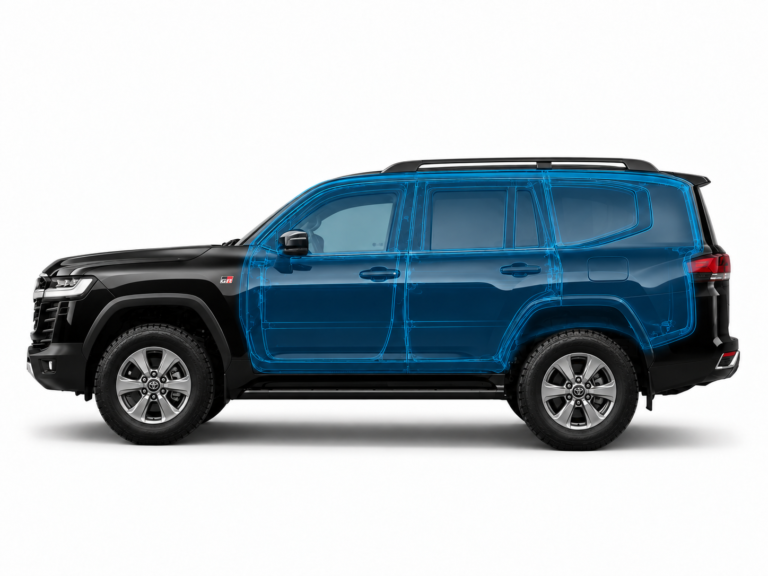

The REFORM LC300 GR is based on the Toyota Land Cruiser 300. Hidden armor protection is integrated into the car's design: an armored capsule covers the interior, roof, and doors, and the ballistic glass has an internal shatterproof layer of polycarbonate.
The diesel engine develops 299 hp and 700 Nm of torque. Combined with a 10-speed automatic transmission and permanent all-wheel drive with a low gear, this ensures the ability to drive on various types of roads.
The Toyota Land Cruiser 300 GR's armor is complemented by a reinforced suspension, upgraded brakes, rims and tires for armor loading. The Runflat system is provided on all five wheels, including the spare. Below are the characteristics and equipment of this car.
Technical specifications of the Toyota Land Cruiser 300 GR
- Make / model: Toyota Land Cruiser 300 GR
- Body type: SUV
- Engine: diesel
- Maximum power: 299 hp
- Maximum torque: 700 N m
- Environmental class: EURO 5
- Transmission: 10-speed automatic
- Drive: permanent full-time with low gear
- Length: 4,925 mm
- Width without mirrors: 1,980 mm
- Height: 1,925 mm
- Front suspension: independent spring on double wishbones, with anti-roll bar
- Rear suspension: dependent spring, on four trailing arms and a transverse link, with anti-roll bar
- Front brakes: ventilated disc
- Rear brakes: ventilated disc
* Specifications are for the Toyota Land Cruiser 300 GR presented on this page. Check with REFORM for current availability and equipment.
Armored cabin REFORM LC300 GR
Booking specification
- Armor protection (capsule) according to the State Standard of Ukraine DSTU 3975-2000 PZSA-4 along the perimeter of the cabin, certified high-alloy armored steel
- Armored cabin capsule according to the State Standard of Ukraine DSTU 3975-2000 PZSA-4
- Roof armor protection

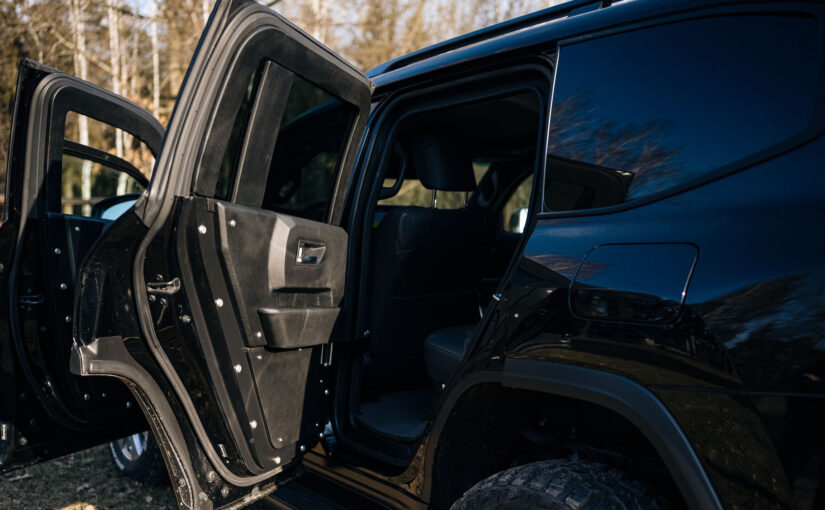

- Armor protection for all car doors
- Bottom armor protection – anti-fragmentation
- Fuel tank protection
- Side armor protection on the left / right of the engine compartment, engine control unit
- Protection and reinforcement of all pillars and door openings of the car with overlap
- Armor protection of the engine compartment behind the front wings
- Armor protection of the partition between the engine and the cabin
- All joints of armored elements - overlap

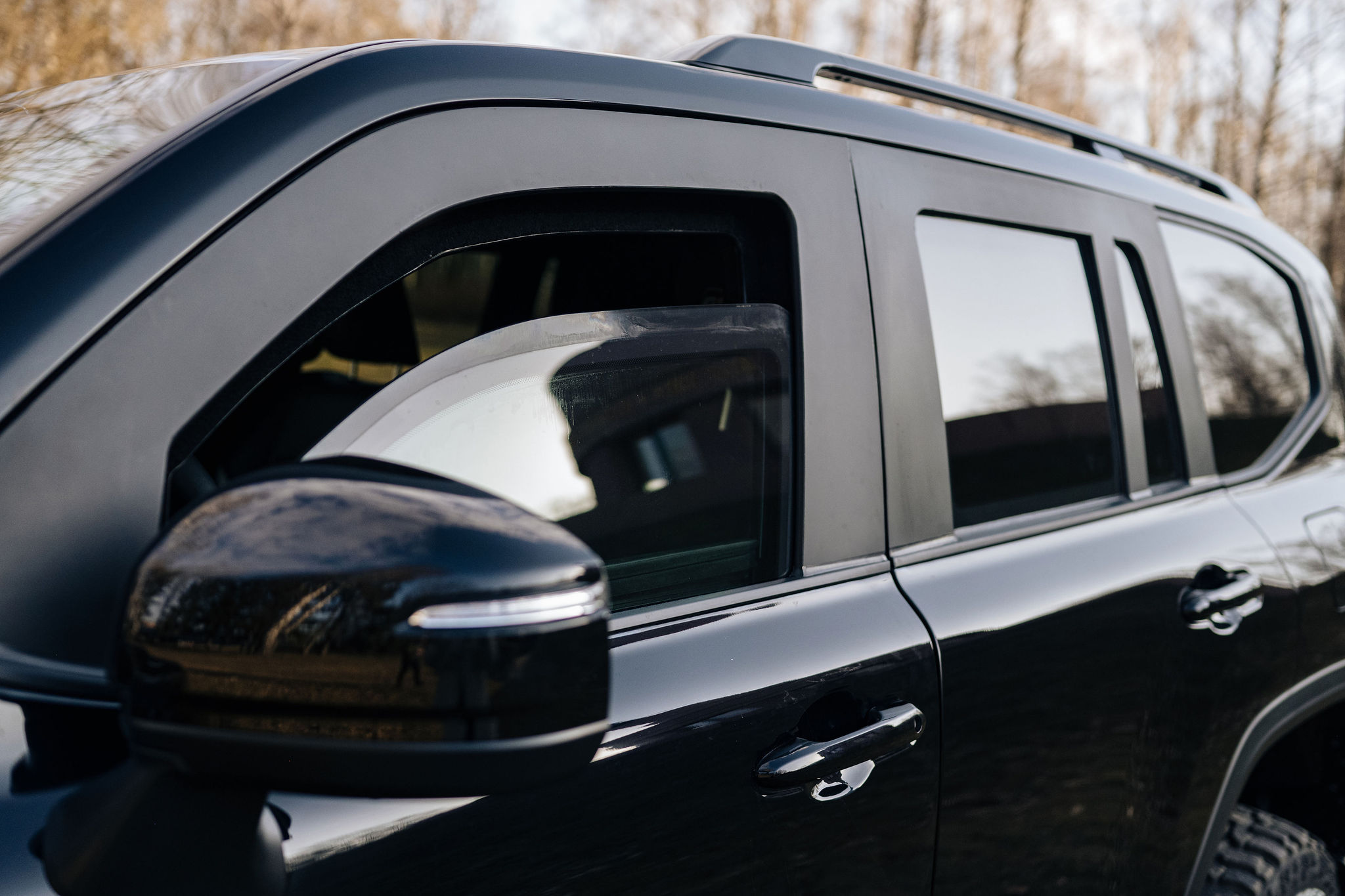

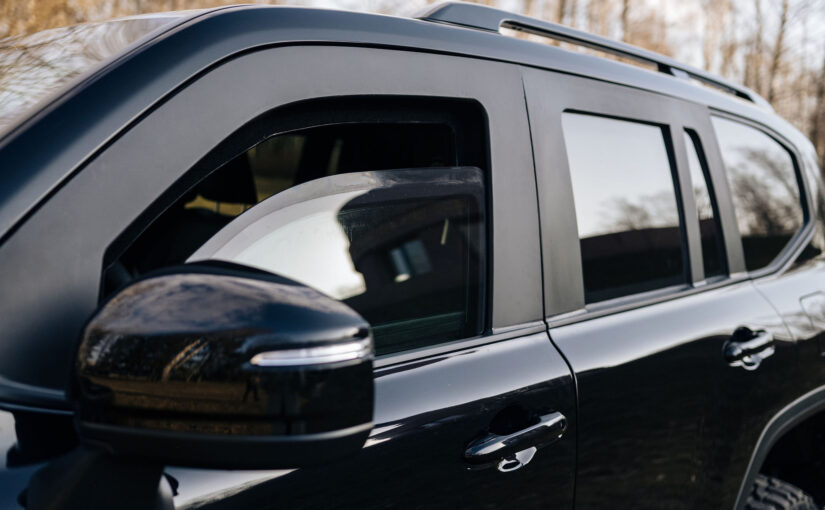

- Ballistic glass, with internal shatterproof coating (polycarbonate)
- Windshield
- Electric heated windshield
- Front side door tempered glass
- Armored glass of rear armored doors
- Two reinforced front door window regulators

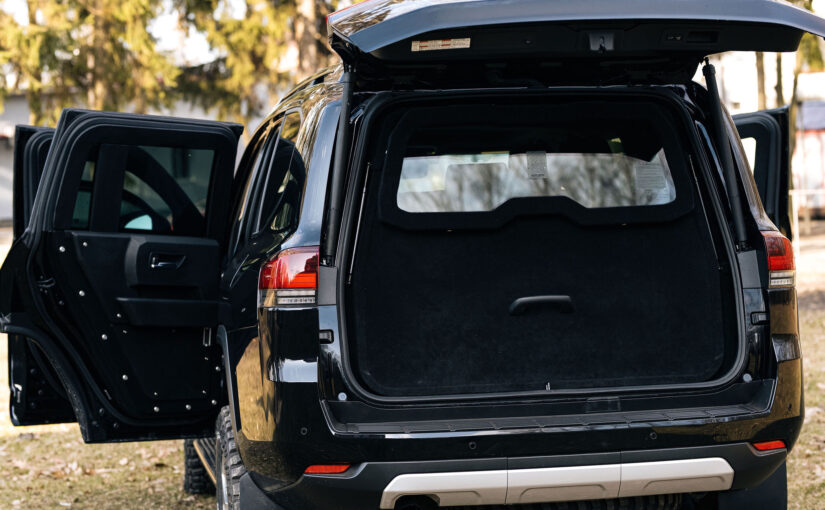

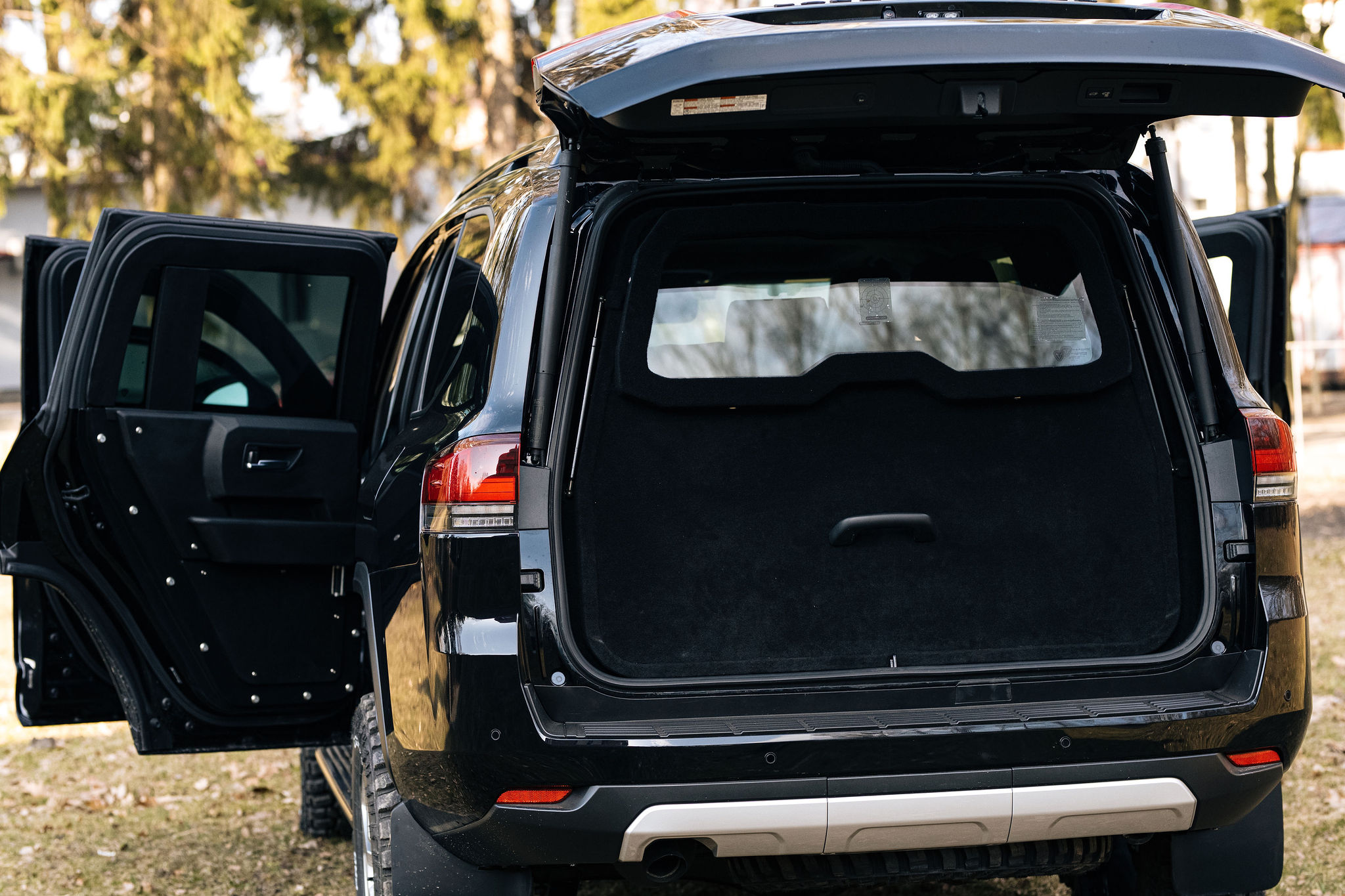

- Armored glass in the rear armored partition (additional armored doors)
- Automatic powder fire extinguishing system in the engine compartment
- Auxiliary handrails of the middle pillars
- Coating of armor elements with anti-corrosion materials
- Driver-street intercom, Intercom system

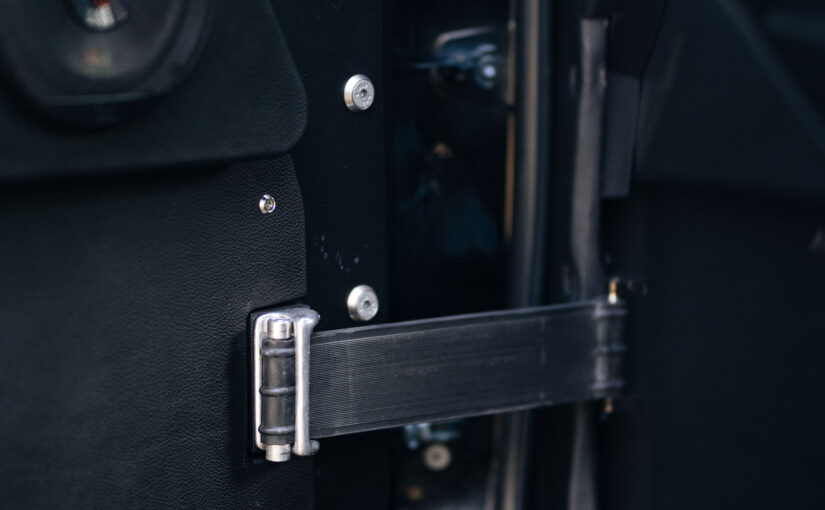

- Reinforced hinges of armored side doors

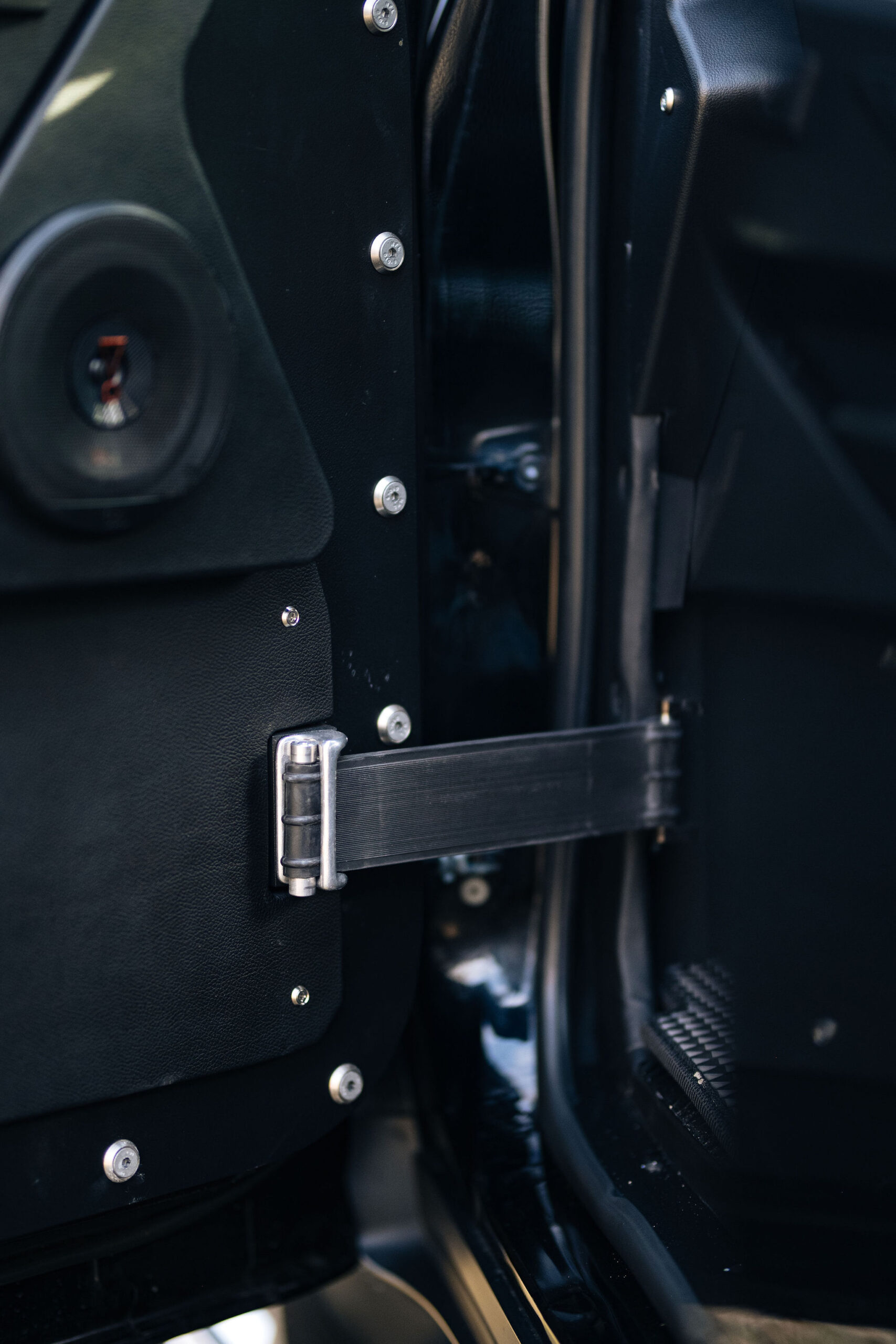

- All doors have nylon restraint straps with double loops to reduce stress on the hinges when opening
- Modified interior trim, taking into account booking
- Strengthening the vehicle suspension for an increased curb weight of at least 5,3 tons
- Upgraded brake systems. Front discs and calipers replaced with reinforced discs for better braking and heat dissipation on all cars
- Extinguisher

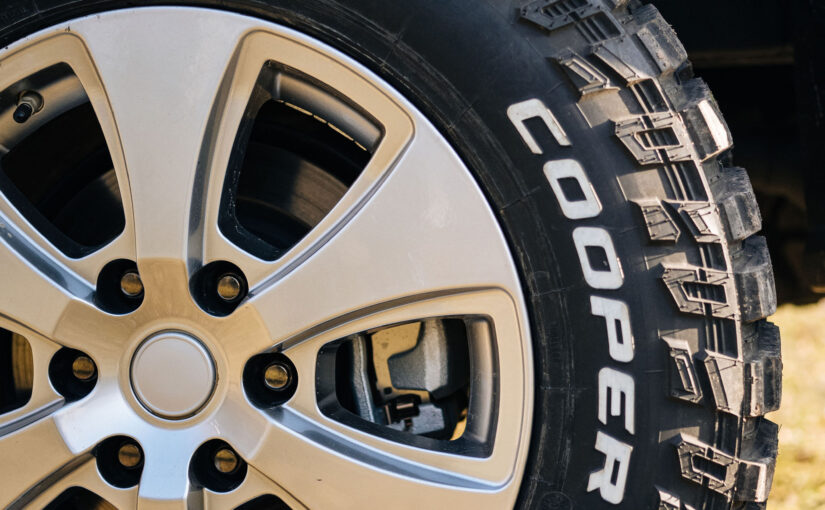

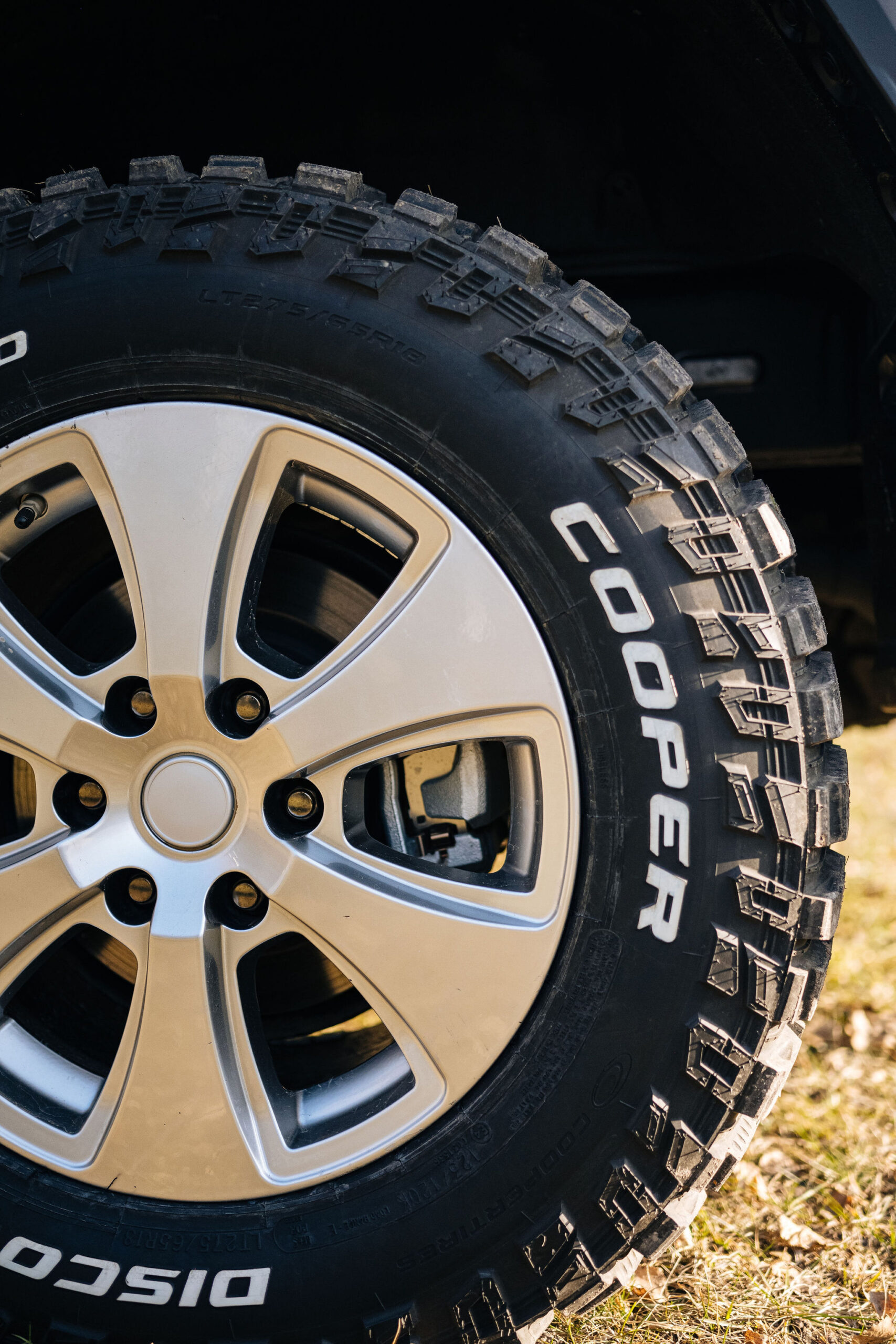

- Reinforced wheel rims for armor loading (5 pcs.), including a spare
- Reinforced tires for armor loading (5 pcs.), including a spare
- Runflat system (5 pcs.), including spare (running on damaged tires)
Are you interested in the armored Toyota Land Cruiser 300 GR?
Specify the availability of the LC300 GR, its equipment and purchase conditions - we will prepare a commercial offer.

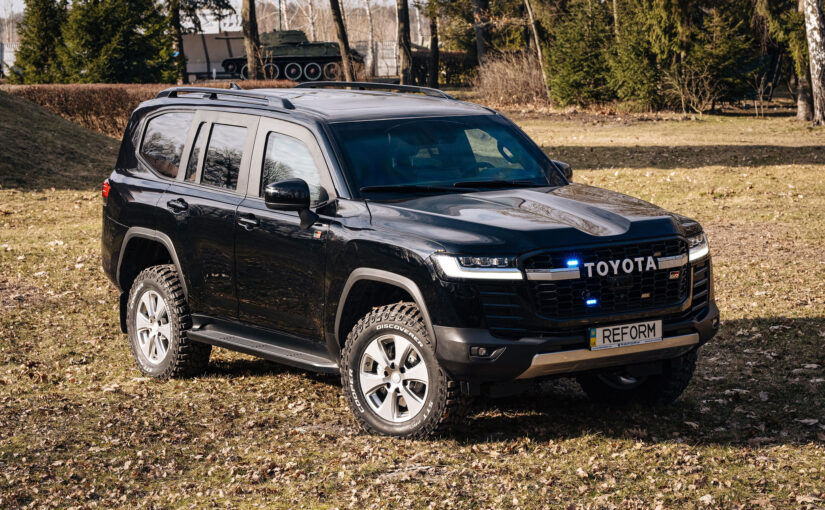

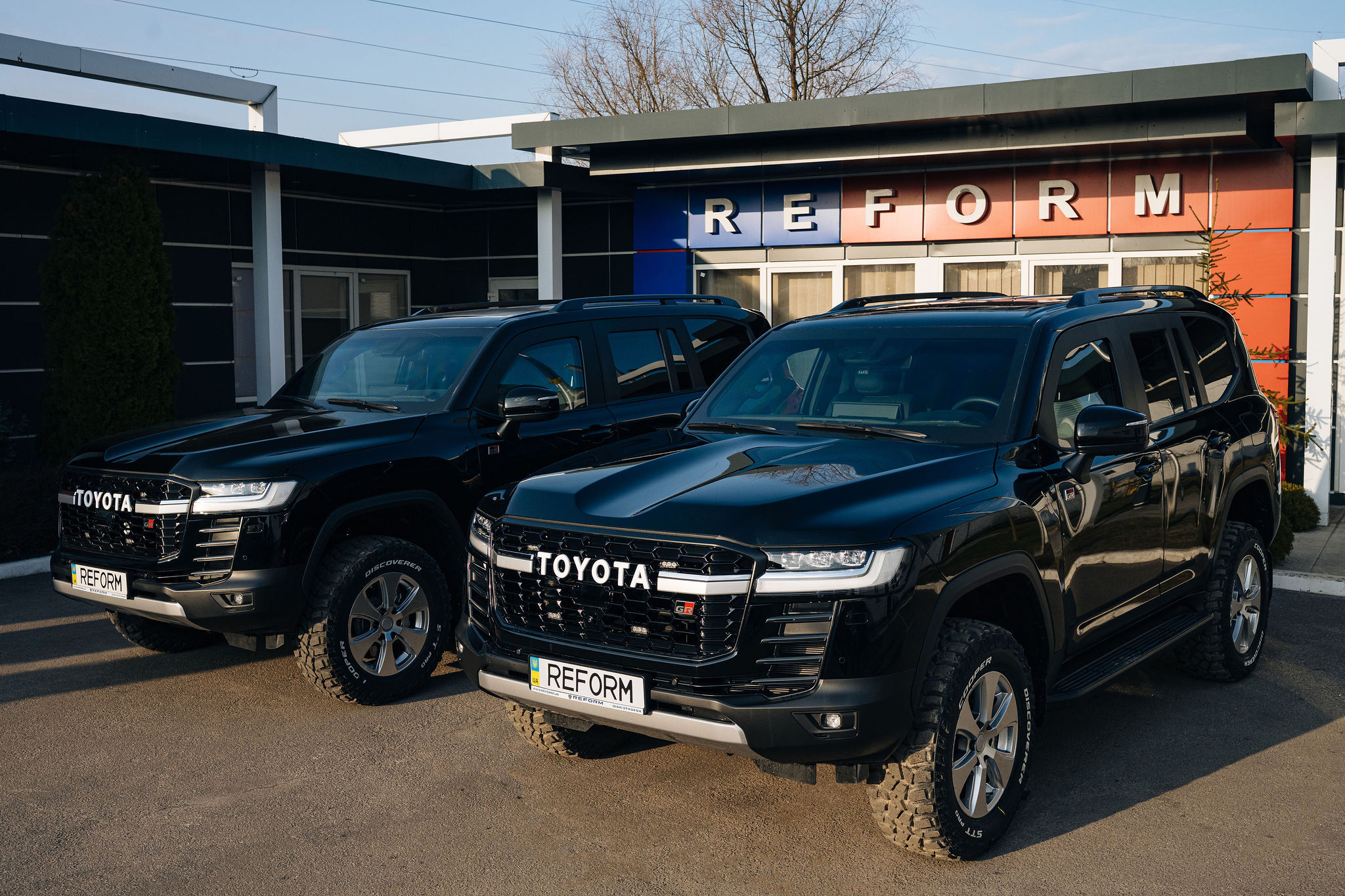

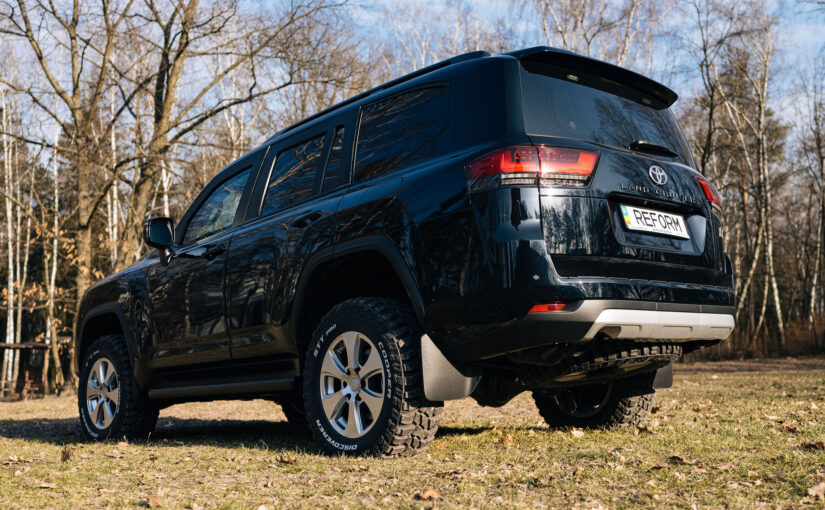

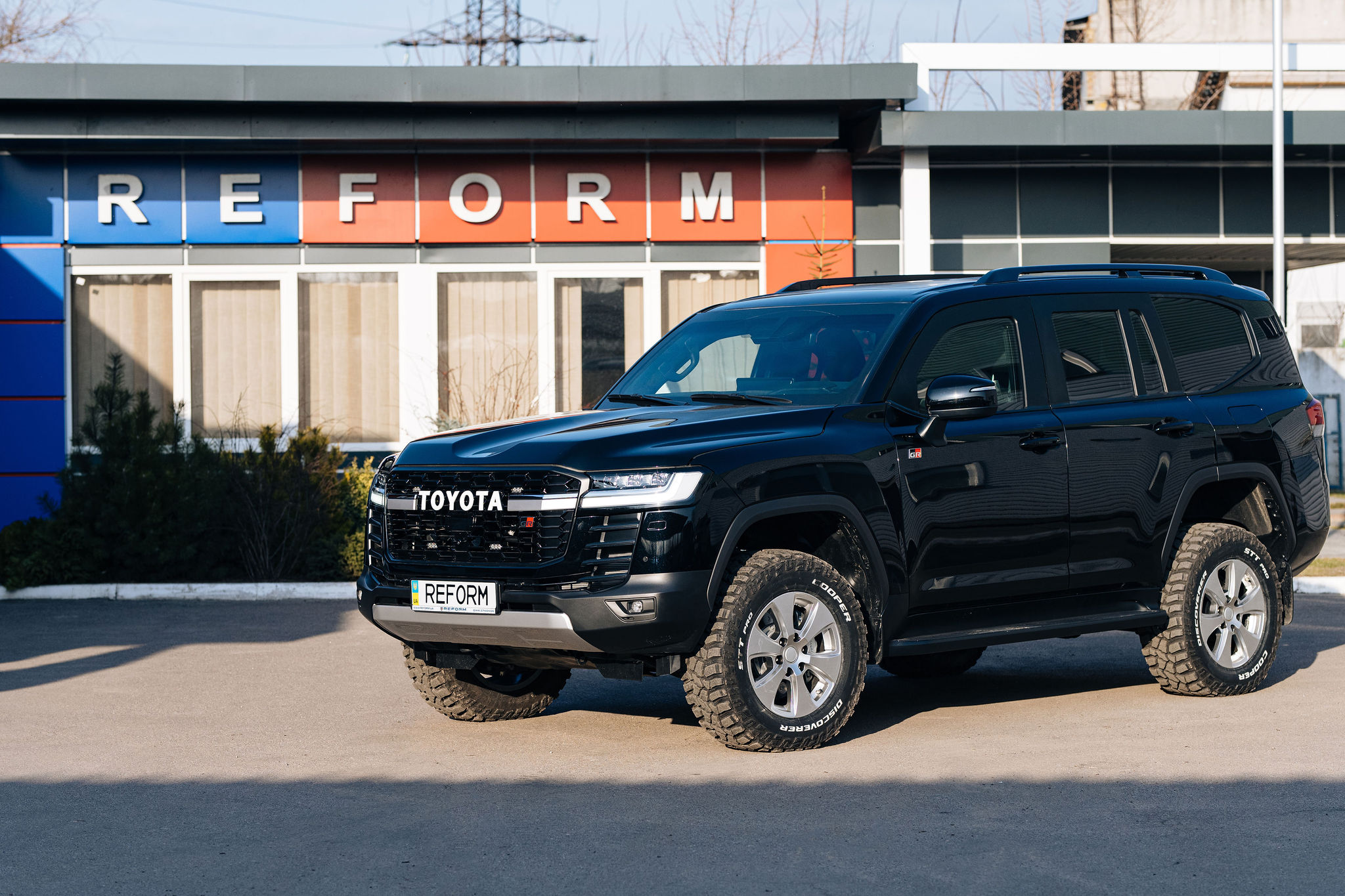

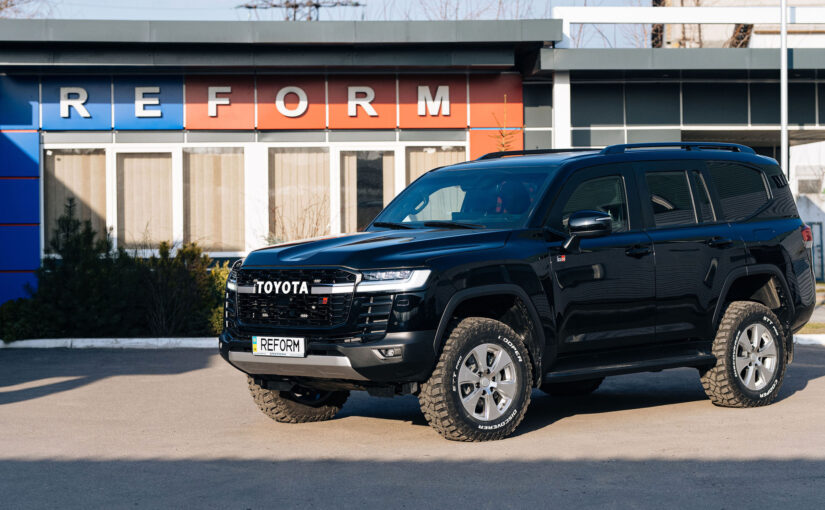

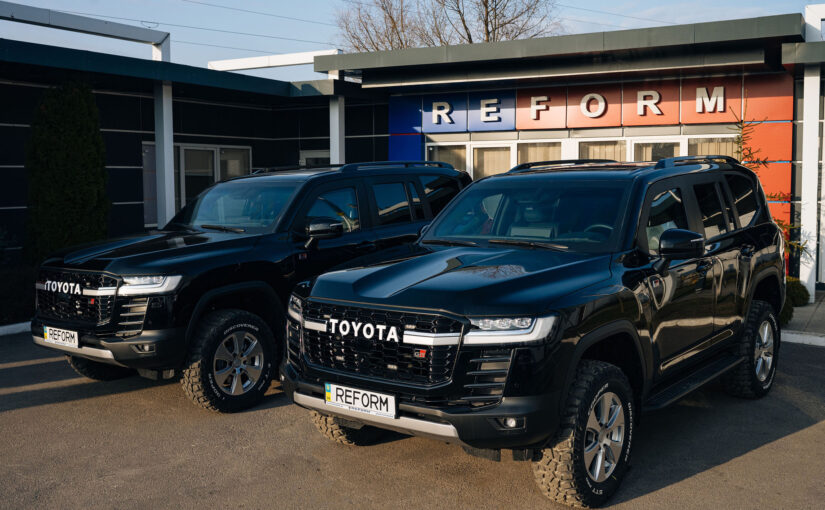

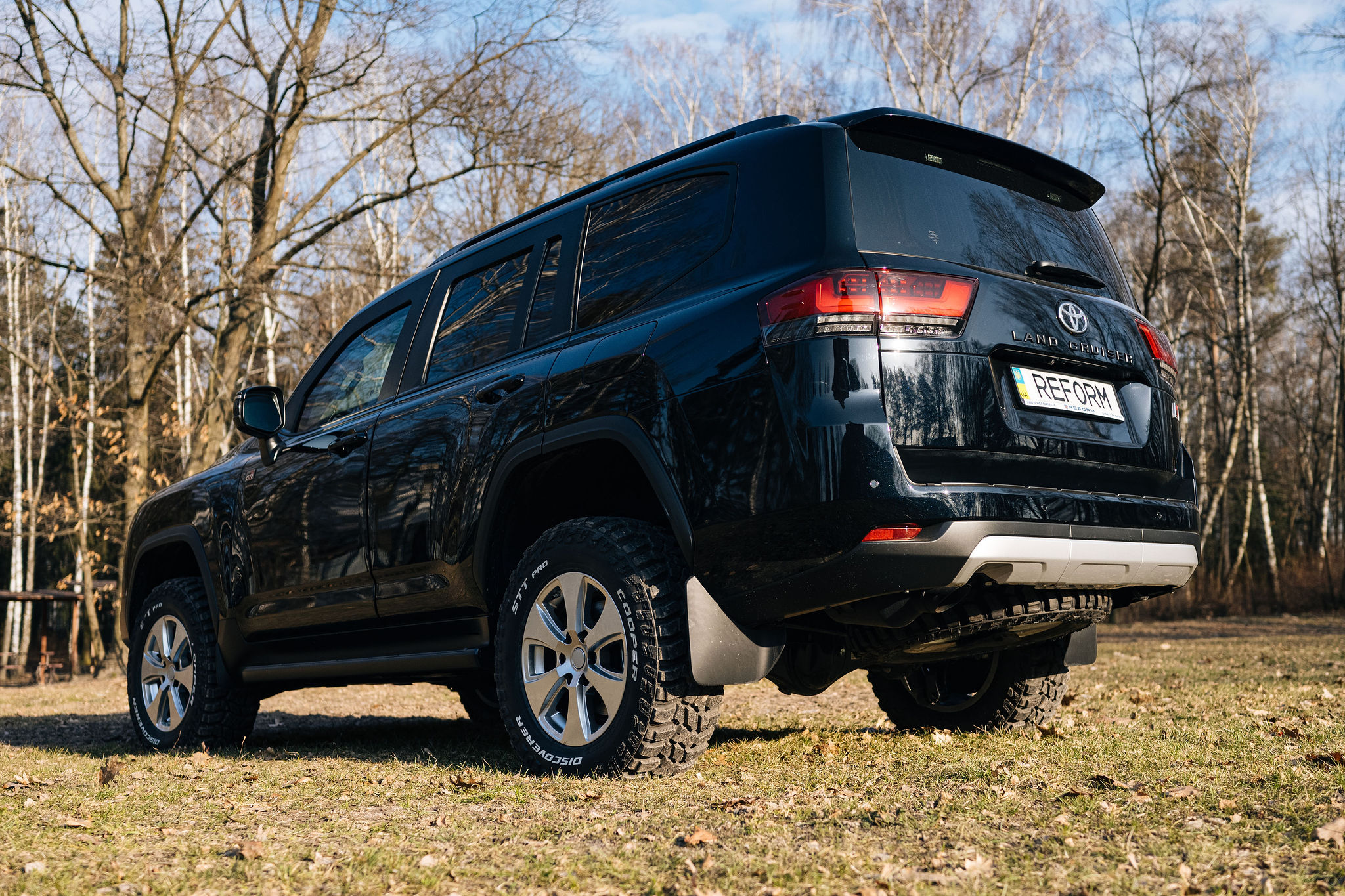

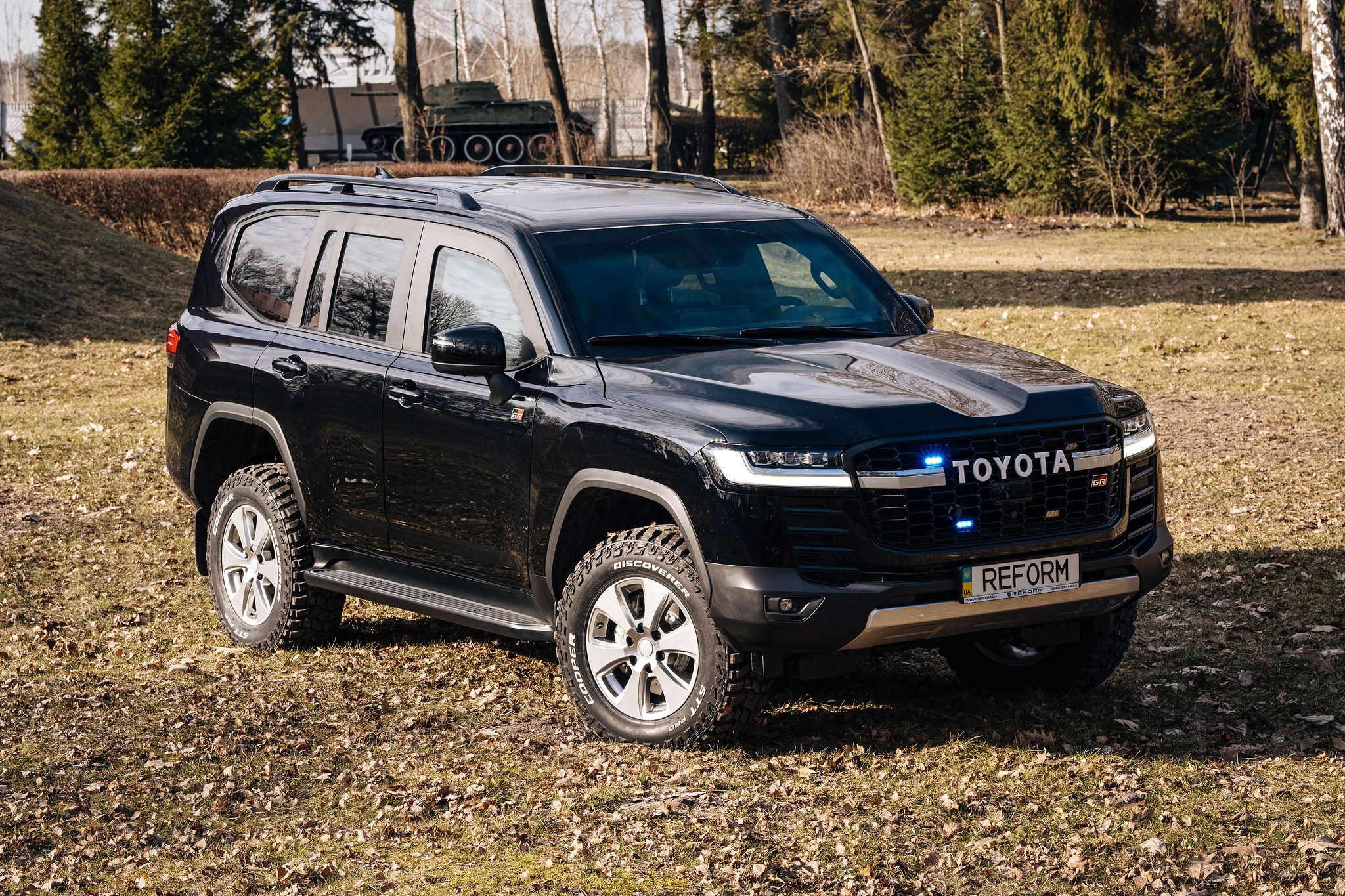

Photo of the armored Toyota Land Cruiser 300 GR
Who is this solution for?
Armored Toyota Land Cruiser 300 GR for business, official and private trips with additional protection requirements
Business leaders and owners
Daily routes, business meetings and trips between cities
Corporate security services
Secure transportation for employees and key individuals
Diplomatic missions
Transportation of diplomats, delegations and representatives of institutions
Міжнародні
Travel of teams and representatives of international missions
State institutions
Official travel and delegation escorts
Security companies
Car for personal security and escorting clients
Private clients
Driver and passenger protection in everyday trips
Difficult and risky routes
All-wheel drive with low gear for different road conditions
Adaptation of Toyota Land Cruiser 300 GR after booking
The integration of the armored capsule increases the load on the main components of the SUV. For the REFORM LC300 GR, the suspension is reinforced for an increased curb weight of at least 5,3 tons - this is the requirement specified in the armor specification.
The braking system is upgraded: the front discs and calipers are replaced with reinforced components for braking and heat dissipation. A set of five reinforced wheels, tires and Runflat inserts includes a spare wheel.

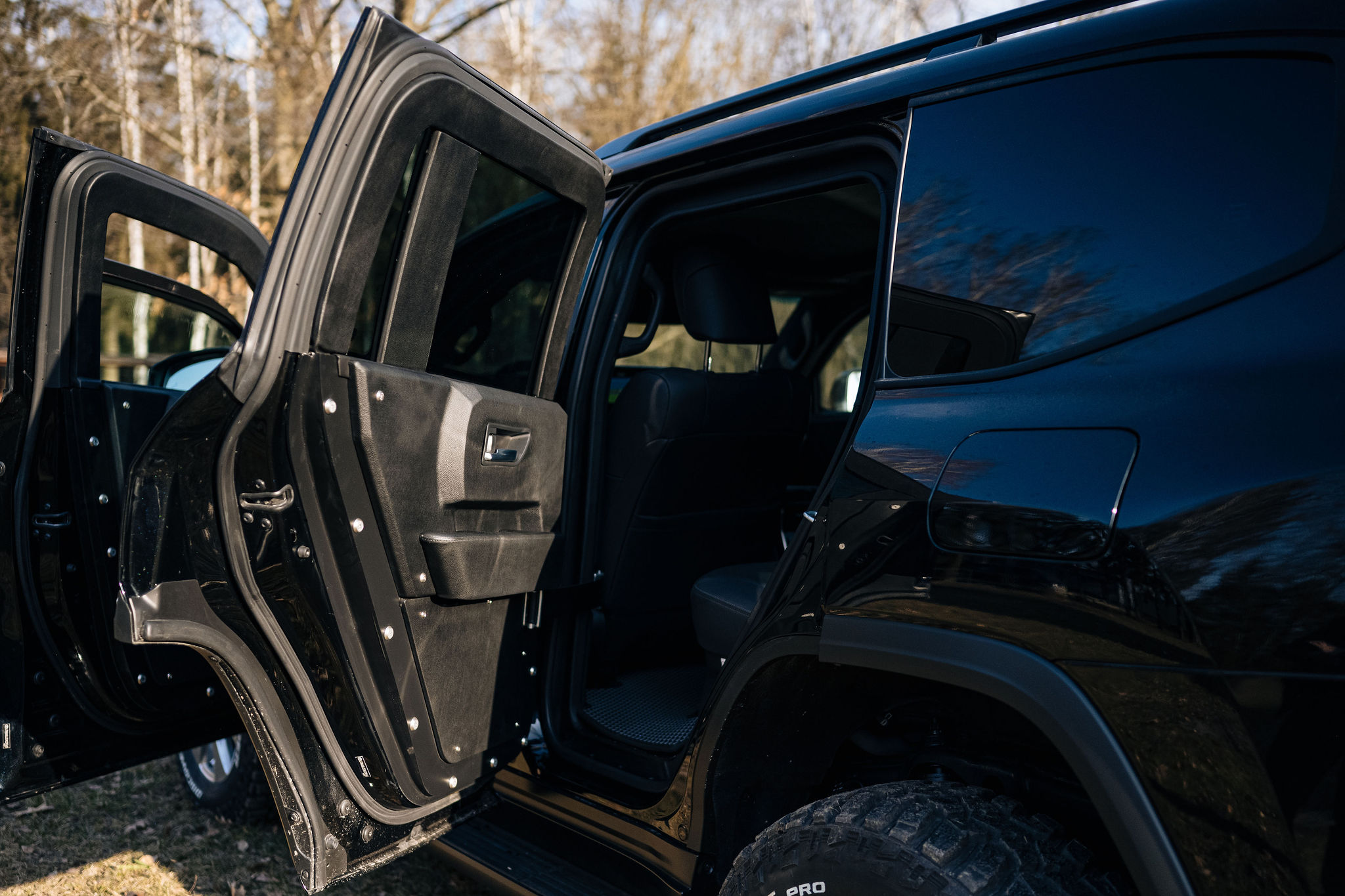

Armored doors are equipped with reinforced hinges and nylon restraint belts with double hinges. The joints of the armor elements are overlapped, and their surfaces are treated with anti-corrosion materials.
Interior and additional equipment

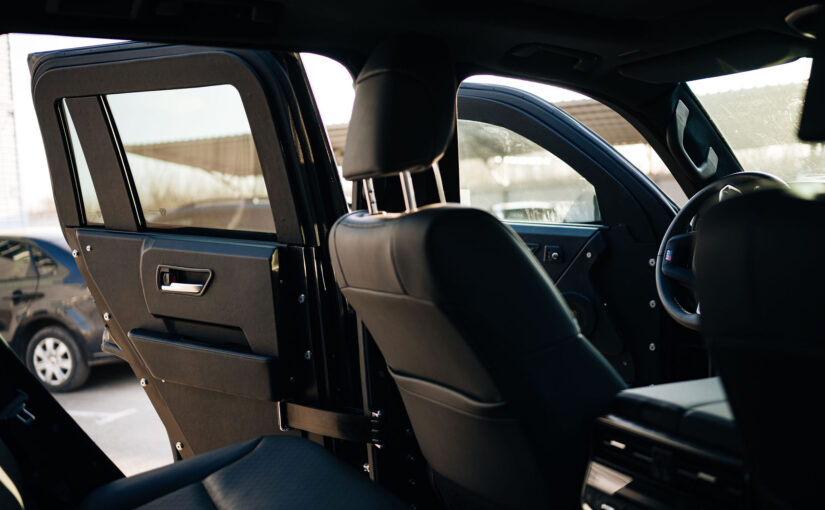

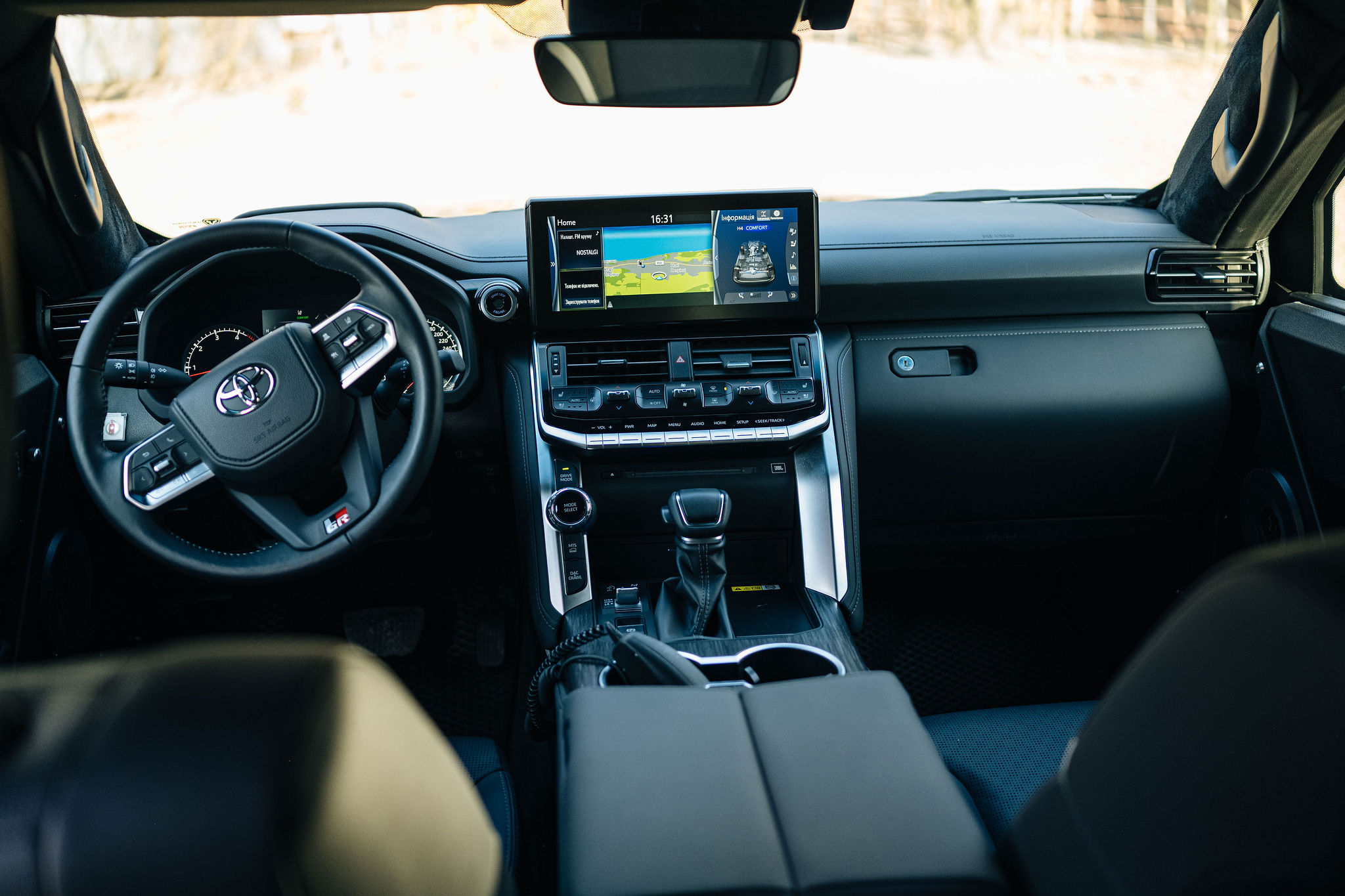

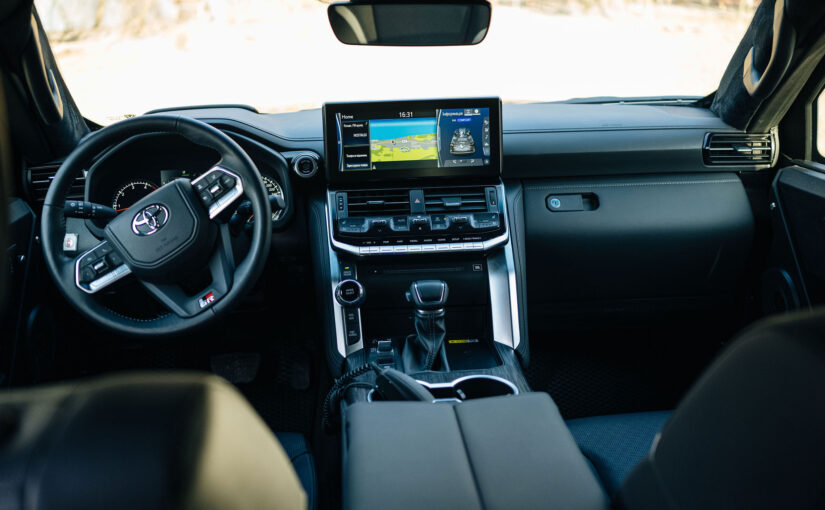

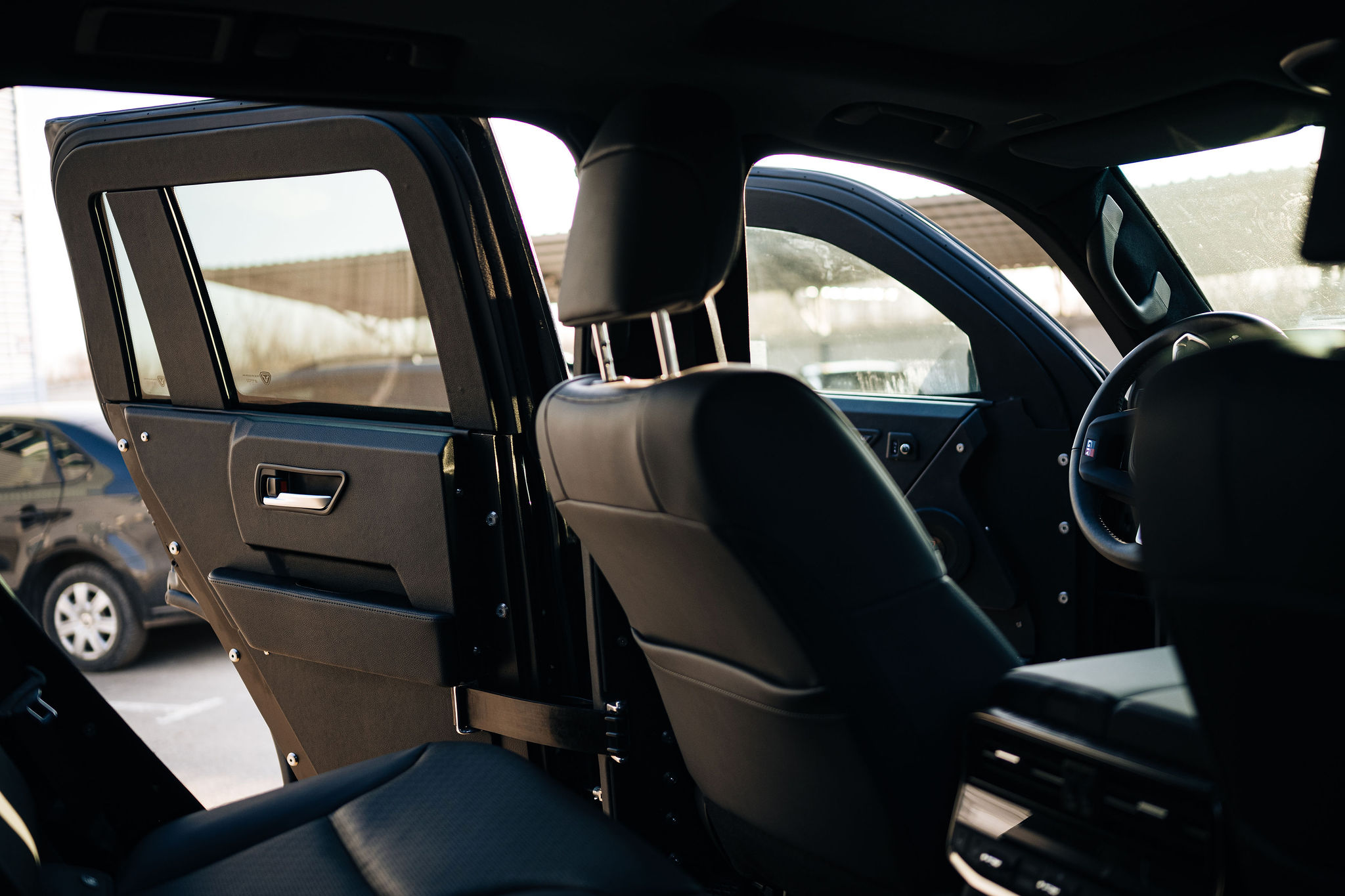

The Toyota Land Cruiser 300 GR interior receives a modified interior trim with armor protection, auxiliary handrails on the B-pillars and two reinforced front door power windows. The windshield is equipped with electric heating.

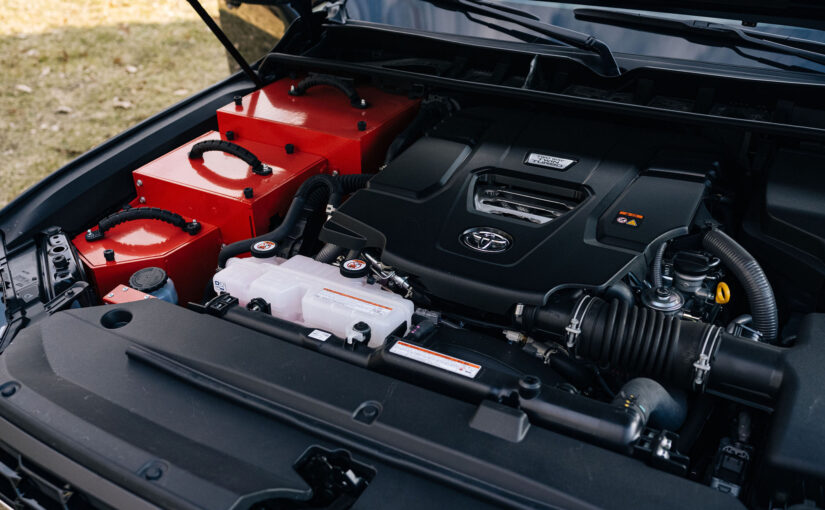

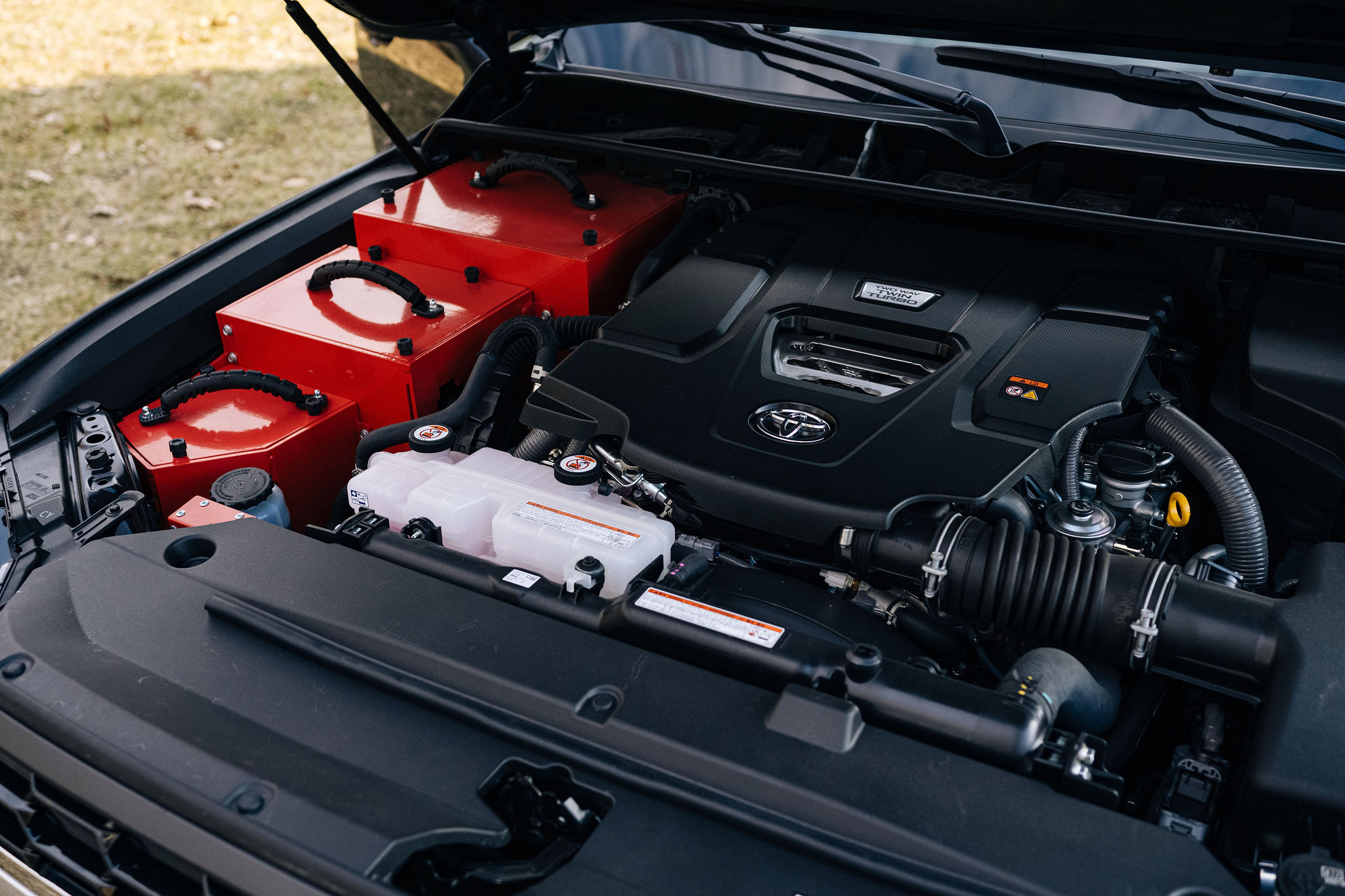

The specification of this vehicle includes a driver-street intercom, an Intercom system, an automatic powder fire suppression system for the engine compartment and a fire extinguisher. Protective elements also cover the fuel tank, engine compartment and engine control unit.
The photos on the page show the exterior, interior and individual equipment elements of the LC300 GR. For an up-to-date offer, please contact the REFORM team.
Protection level
PZSA-4
Hidden armored capsule
What does it protect against?
5,45 × 39 mm
automatic
Fragments and debris
anti-fragmentation protection

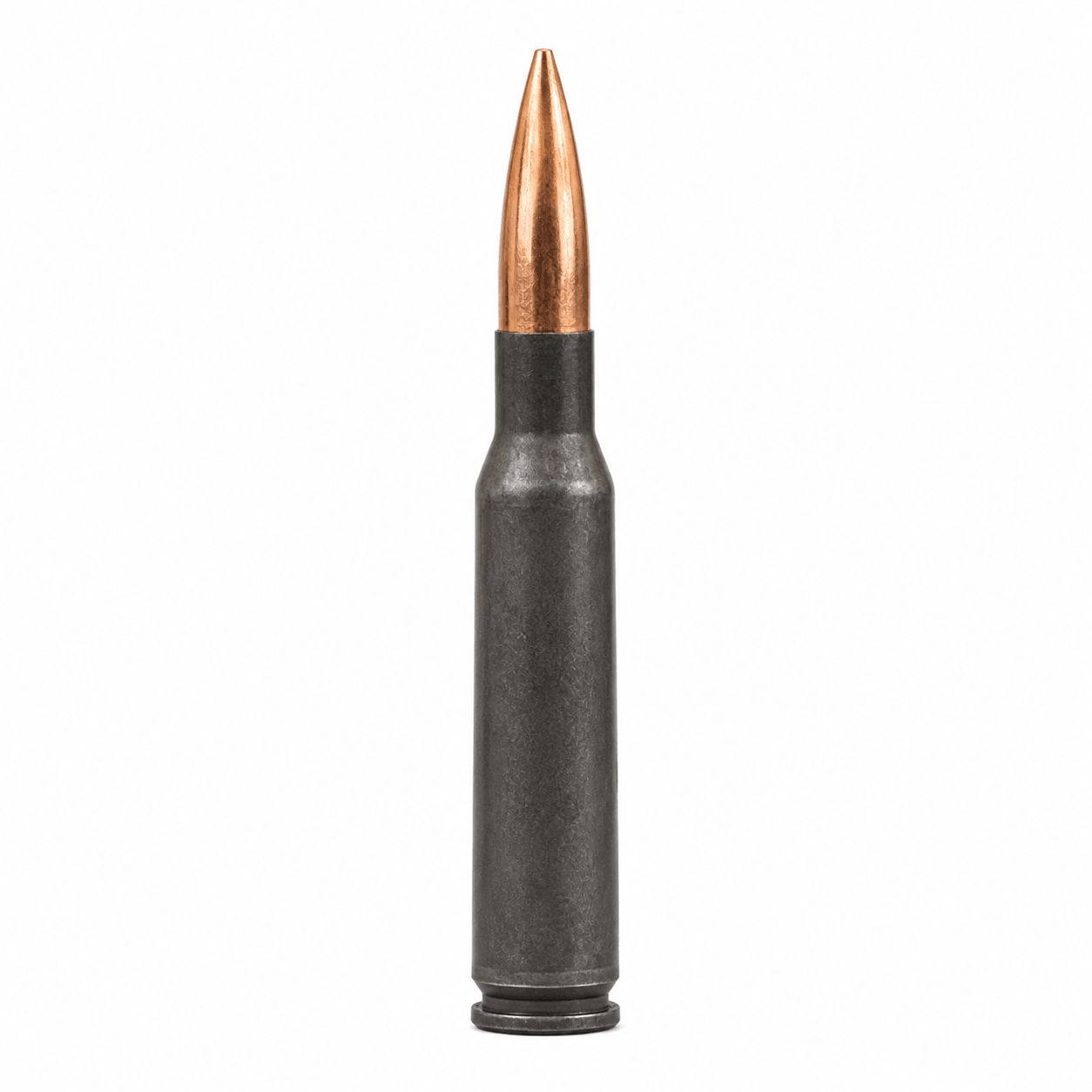

7,62×54R mm
rifle weapon
FREQUENTLY ASKED QUESTIONS
For this, REFORM LC300 GR is specified with PZSA-4 armor protection according to DSTU 3975-2000 and additional protection B6 (BR6/FB6). The armor capsule covers the interior, roof and doors; the bottom has anti-fragmentation protection.
The specification includes a 299 hp diesel engine with 700 Nm of torque and a 10-speed automatic transmission. The environmental class is EURO 5.
Yes. The car is equipped with permanent all-wheel drive with a low gear. The basic body type is an SUV.
Armor protection is provided for the interior, roof, doors, pillars and door openings with overlapping joints. The fuel tank, the partition between the engine and the interior, certain areas of the engine compartment and the engine control unit are also protected.
Ballistic glass has an internal shatterproof layer of polycarbonate. Bulletproof glass is installed in the front, in the front and rear doors and in the rear armored partition. The windshield bulletproof glass is equipped with electric heating.
The suspension is reinforced for the increased curb weight; the specification states a requirement of no less than 5,3 tons. The brake system is being modernized, in particular, the front discs and calipers are being replaced with reinforced components.
Yes. The initial specification includes five Runflat kits, including a spare wheel, and five reinforced rims and tires. Runflats are designed to continue driving after a tire is damaged; please check with REFORM for operating conditions.
Reinforced door hinges, nylon restraint belts with double loops and two reinforced front door windows have been installed. The interior trim has been modified to take into account the reservation, and auxiliary handrails on the B-pillars have been added.
A driver-street intercom, an intercom system, an automatic powder fire extinguishing system for the engine compartment, and a fire extinguisher are provided.
Call REFORM at +380 (44) 374-04-64 or leave a request for a commercial offer. The team will clarify the current availability, equipment of this LC300 GR and terms of purchase.
